Allweiler Progressive Cavity – All-Optiflow

Simple and Easy to Maintain
German made and German Reliability
Mechanical Seal or Packed Gland
Available with DIN (standard) or ANSI flanges
100% higher flow rates than conventional geometry pumps
Flow rates to 3800 l/min
Viscosity ranging up to 300,000 mm²/sec
Fitted with the Patented “Shark Skin”rotor and Honeycombed stator which when working in tandem reduces friction by up to 50% and reduces energy consumption by up to 15%
Increased efficiency = decreased running costs

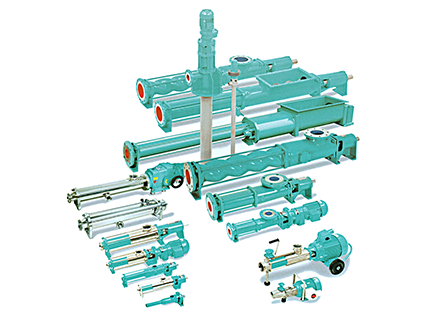

All-Optiflow Progressive Cavity (PC) Series
The simplest and cheapest of the Allweiler PC range is the All-Optiflow series. These are suitable for low to high viscosity liquids, products containing some abrasive particles and solids, entrapped gases, neutral substances, and products that contain fibrous materials. All-Optiflow pumps are commonly used in the Waste Water and Waste Water Treatment sectors.

Options:
Available in both mechanical seal and packed gland. Various stator material options available. Most commonly supplied with DIN flanges, also available in ANSI on special request.

Simple and Easy to Maintain
German made and German Reliability
Mechanical Seal or Packed Gland
Available with DIN (standard) or ANSI flanges
Various stator materials available to suit fluid characteristics
100% higher flow rates than conventioanl geometry pumps
Flow rates to 3800 l/min
Viscosity ranging up to 300,000 mm²/sec
Fitted with the Patented “Shark Skin”rotor and Honeycombed stator which when working in tandem reduces friction by up to 50% and reduces energy consumption by up to 15%
Increased efficiency = decreased running costs

Performance Specification

Flow	Up to 3,800 L/min (single stage only)
Delivery Pressure	Up to 6 Bar
Discharge Pressure	Up to 16 Bar
Viscosity	Up to 300,000 mm²/s
Temperature	Up to 100 Degrees Celsius
Admissible Solids	Up to 60% by Volume
Solids (Size and length)	Varies depending on unit size

See data sheets and manuals for further information
