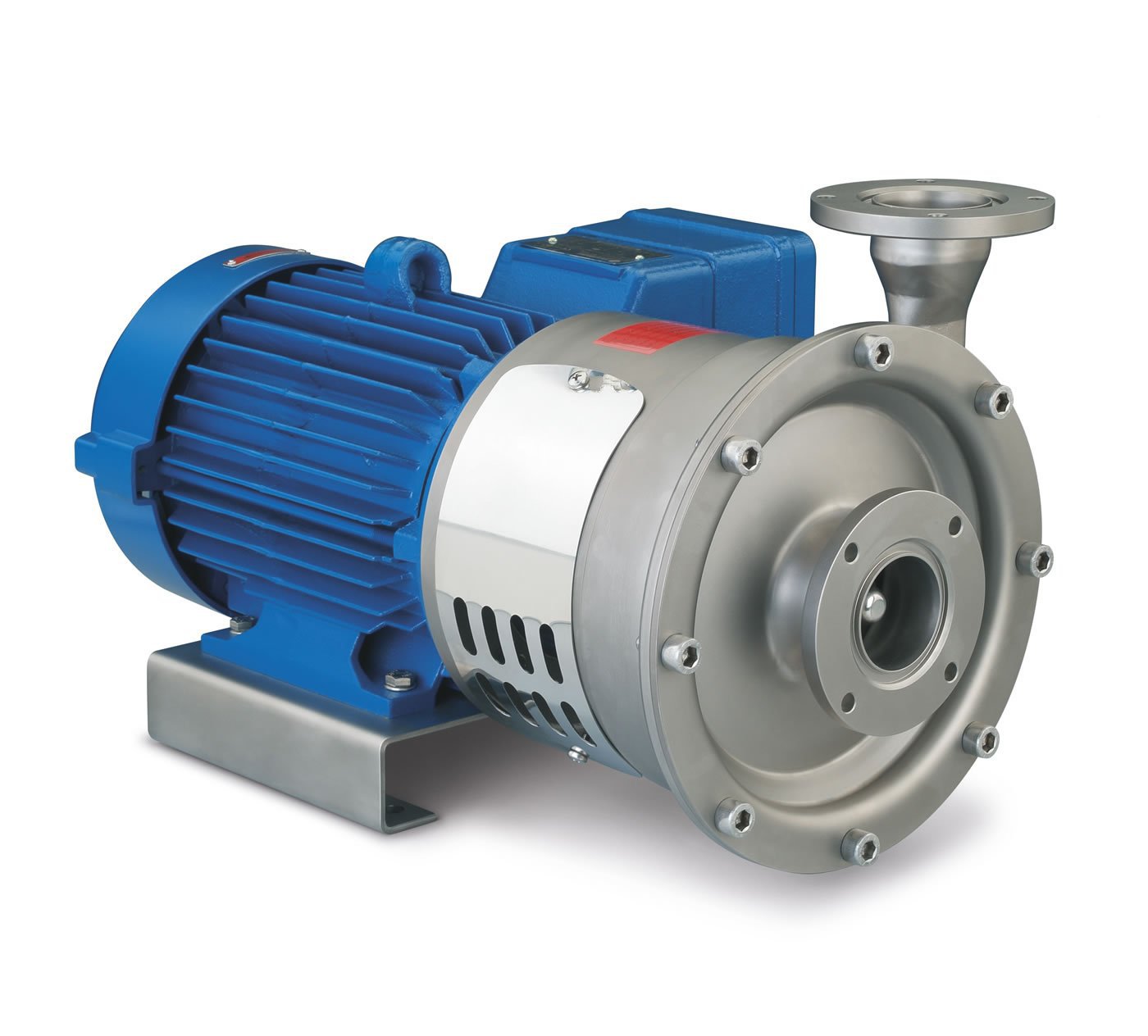

FXV6-567K Centrifugal Pumps

• Centrifugal pump with Catex certificate for explosive atmospheres
• Zone 1 or 2 (Category 2 or 3)
• Temperature class T3, T4 or T5
• Very solid design to ensure maximum safety and durability
• The body-flange formed by microfusion and the cold-stamped suction cover are joined with screws
• High hydraulic output, semi-open impeller produced by microfusion techniques
• Flameproof motor II 2G Exd IIC T5
• Single or double Catex certified mechanical seal
• GAS, DIN 11851 or DIN 2633 flange connections
• Brushed matt finish and stainless steel baseplate

TECHNICAL SPECIFICATIONS

Maximum flow

150 m3/h (2500 l/min)

Maximum differential head

9 bar (90 mWC)

Power

0.37 – 22 kW (0.5 – 30 hp)

Temperature

-25 – +150 ºC

Maximum viscosity

500 cP

Rotation speed

1450 – 2900 rpm (50 Hz)
1750 – 3450 rpm (60 Hz)

Material

AISI 316 (EN 1.4401)

Applications

Alcohols, liquors, water, wine, beer, brine, acids, glycols, solvents, hydrocarbons, etc.
