. Allweiler SM Series Triple Screw - Seal Pumps and Valves

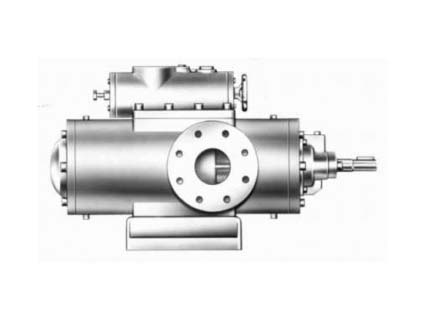

Allweiler SM Series Triple Screw

  • General Lubricating Applications up to 120 Bar
  • Multiple Shaft Sealing Options
  • Pressure Relief Valves
  • Flange or Pedestal Mount

Chemically neutral, lubricating, e.g., fuel oils, lube oils,
hydraulic oils, cutting oils, coolant oils, cooling oils, waxes,
tar oils, polyols, isocyanates, paints, lacquers

Firing, hydraulics, mechanical engineering, general industrial
technologies, chemical and petrochemical industries, marine
and offshore engineering

Basic Construction Features:

  • Base plate design (pump and motor mounted on a base plate)
  • Bulkhead mounting
  • Pedestal mounting
  • Dry installation
  • Submerged design
  • In-tank installation
  • Vertical installation
  • Horizontal installation
  • Spacer coupling (optional)
  • Self – priming
  • With shaft sealing

Performance Summary:

Capacity (l/min)2,170
Inlet Pressure (Bar)7
Discharge Pressure (Bar)120
Differential Pressure (Bar)120
Viscosity Range (mm2/s)15,000
Temperature Range (Degrees Celsius)250
Speed (RPM)3,600
.
