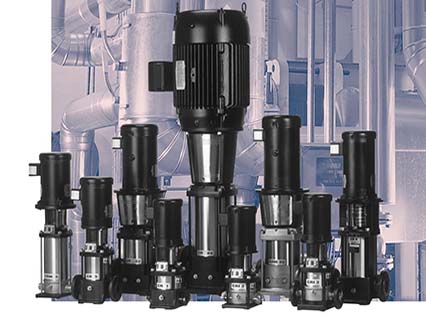

The basic CR pump range, which can be applied in almost any industrial solution, is already in itself the broadest range available. Through our modular approach, we have made it even broader.
The basic CR pump range is available in four different materials: cast iron, two grades of stainless steel, and all-titanium. There are eleven flow sizes, capable of producing up to almost 50 bar of pressure, and with a variety of shaft seals, rubber materials and supply voltages.
Pump parts which are typically vulnerable to difficult liquids or particularly demanding operating conditions can be optimised for their purpose and designed for specific requirements.
CR pumps provide a complete range of pump solutions so that all applications, industrial and domestic, can benefit from the Grundfos touch.
The applications that can be covered include the following:
- Process water systems
- Washing and cleaning systems
- Seawater systems
- Pumping of acids and alkalis
- Ultrafiltration systems
- Reverse osmosis systems
- Swimming pools
Below is a summary of the CR range and the variations within this range:
CR –
- Vertical, multistage pump
- Fitted with IP55 motor
- CRIS models now available for low flow applications (nominal flow 0.5m3/hr)
CRI –
- Vertical, multistage pump
- 304 Stainless Steel
- Fitted with IP55 motor
- Available with PJE Vicaulic base on request
- Fitted with EPDM Elastomers
CRE –
- CR pump with variable speed E motor and pressure tranducer
- Fitted with EPDM Elastomers
- Fitted with IP55 motor
CRIE –
- CRI pump with variable speed E motor and pressure tranducer
- Fitted with EPDM Elastomers
- Fitted with IP55 motor
CRN –
- Vertical, multi stage pump
- 316 Stainless Steel
- Fitted with IP55 motor
- Fired with Viton Elastomers
- CRN1 – CRN 20 available with PJE Victaulic base on request
The range of the Grundfos CR pumps is extensive. This is best explained within the information available under the “Additional Information” tab. See the complete product guide which includes curves and other performance and specification data. Further to this extensive information is available through this tab for installation, operation and service of the CR range of pumps.
