Ebara’s range of horizontal split case pumps represent a very robust, compact and competitively priced pump. Ebara’s range commences at 0.6m3/hr right the way up to 32m3/hr. Many models between these two flow rates offer great efficiency and flexibility based on the individual projects need.

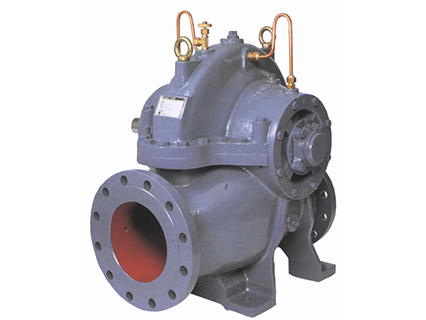

Ebara – Horizontal Split Case Pumps – CNA/CSA
- Extensive Range
- High Flow
- Cast Iron Construction
- Very compact design for ease of installation and permits minimum maintenance
- Azially split casing allows the easy romoval of the top casing for impsction and service
- A wider range of performance with head up to 150m
- High speed drives and vertical mount available
- Anti Corrosion materials used on the rotating parts
- High quality sealed and cartridge type bearing unit provides the high durability
- Mechanical seal for easy maintenance

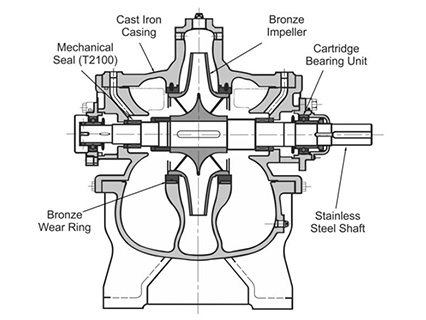

- Materials: Cast iron casing, bronze impeller, 316 SS shaft
- Shaft seal: Mechanical seal (optional gland packing)
- Power used: up to 425 kW
- Flow rates: 0.6 to 35 m3/min
- Head: 5 to 140m
- Outlet size: 100 to 350 mm
