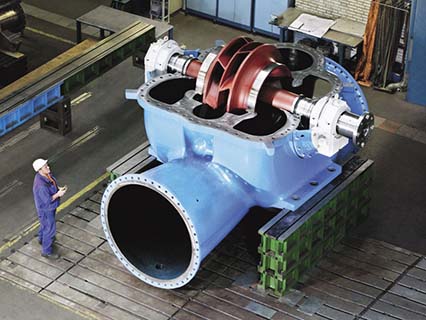

Double suction split case pumps are installed for water supply, irrigation, or flood control; as circulation water or cooling water pumps; in district heating plants or as fan pumps in the pulp and paper industry. With efficiencies of over 90%, ANDRITZ split case pumps help to save valuable energy. All pumps are fitted with a double-flow radial impeller which achieves very favorable NPSH values. Due to the axial split case design, maintenance is fast and easy.

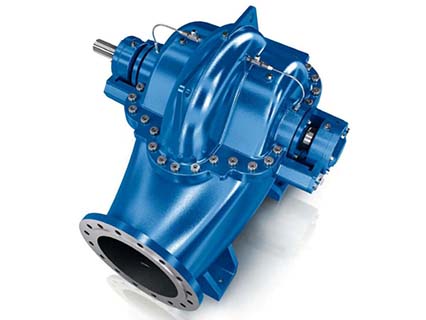

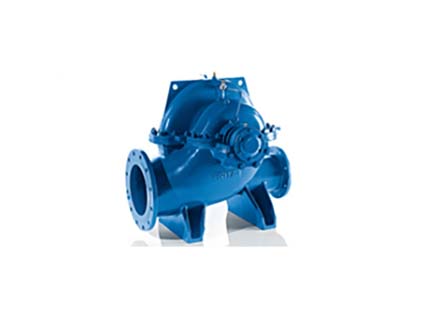

Ritz Axial Split Case – ASC and FP Series
- Efficient, Economical Design
- High Flow
Performance Specification:
| Ritz – ASC | Ritz – FP | |
| Design/Configuration | Single-stage, axial split case | Single-stage, double suction, closed impeller |
| Head (m) | Up to 150 | Up to 160 |
| Flow Rate (m3/hr) | Up to 4,200 | 200 – 20,000 |
| Pressure (Bar) | Up to 25 | Up to 25 |
| Temperature (Degrees Celsius) | Up to 110 | Up to 110 |
