Grundfos SOLOLIFT 2

  • ompact Lifting Station
  • Easy to Install
  • Odor Free
  • Sturdy Construction
  • Pump from Toilets and Other Grey water sources

SOLOLIFT2 is a unique range of compact lifting stations enabling a drain of any domestic sanitary appliance wherever needed, independent from the gravity drain system. The units collect and pump the waste water through a thin pressure pipe (>23mm) to the next down pipe – up to 6m high or 100m distance.  An extra toilet or a complete bathroom in attic or basement must be no longer only a wish with SOLOLIFT2.

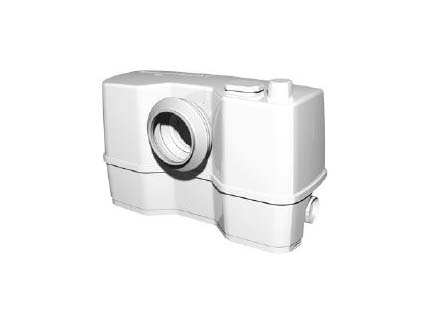

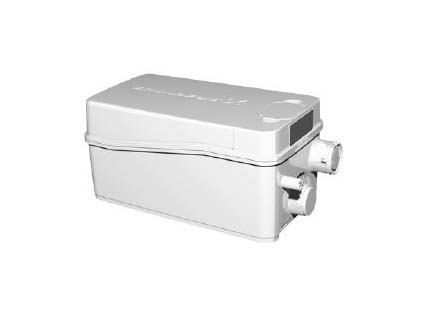

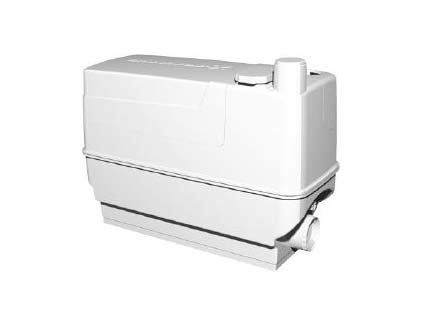

The range consists of 5 compact lifting station variants for disposal of domestic waste water.  3 units, called WC-1, WC-3 and CWC-3, are designed to take waste water from a toilet and further sanitary appliances.  2 units, called C-2 and D-2, are designed to take grey waste water from several objects.  The numbers indicates how many additional inlet connections are possible.

SOLOLIFT2 is designed according to the needs of professionals – high reliability and easy, clean service in mind.  The units come ready to use with a plug and operate full automatic when water enters the tank.

Wherever the drain of a sanitary appliance is required but no gravity drain pipe is available or possible. The units with a WC connection are dedicated to installation in private homes only. Other units can be utilized also for commercial application.

  • Ready-to-install solution
  • Highest reliability thanks to a high performance cutter and motor
  • Handle accidently flushed female articles
  • fast, easy and clean service – no need to remove the unit from installation
  • Alll relevant service parts dry and clean accessible – not submerged in tank
  • Easy access level switch units, single accessible for maintenance
  • Pressure proof, welded tank system, leakage free in case of backwater
  • Odour-free by venting valve with charcoal filter
  • Maintenance free tank design reducing clogging risk
  • Hot water resistant up to 90°C for 30 min.
  • Very compact design
  • Low start levels enable modern, flat shower trays
  • Selectable outlet direction (top and side)
  • height adjustable inlet connectors ease installation and replacement
  • up to 4 inlet pipe and 6 pressure pipe connection selectable
  • all units LGA-, VDE-, EMC- and GOST- approved
.
